Shigemi Advanced NMR microtube assembly

货号
Z529281
规格纯度
matched with D2O, Shigemi BMS-005TV, bottom L 15 mm
参考价格
3242.55 *本价格含增值税费
促销
服务
  • 原厂保证
  • 包邮
  • 增值税票
数量
-+
产品名称:
Shigemi Advanced NMR microtube assembly
nmr sample tubes
nmr tubes
Shigemi nmr tubes
产品介绍:

产品说明

一般描述

Shigemi NMR microtubes offer high precision quality in NMR spectroscopy.
The NMR microtubes are made out of a special type of hard glass wtih excellent chemical durability, and are magnetic susceptibility matched to each of the solvents they are identified with.
The Advanced NMR microtube consists of outer tube and insert and has increased sensitivity with these improved features:

  • Thinner glass wall in the sample area than symmetrical microtube (0.20 mm vs 0.40 mm), increasing the sample capacity held in the RF region by a factor of 1.2
  • 16% better signal to noise ratio than symmetric tubes
  • Despite the increased sample volume, artifacts caused by the RF inhomogeneity are very limited and increased sensitivity is expected
  • Suitable for 900 MHz NMR instruments

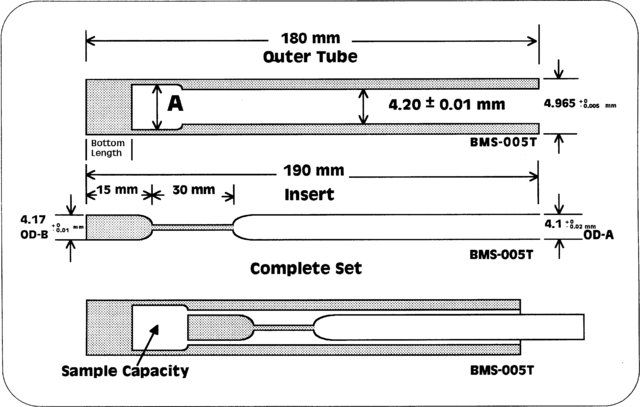

  • 5 mm O.D. tubes: insert: 190.0 L × 4.1 mm O.D.; outer sample tube: 180.0 × 4.965 mm
  • 8 mm O.D. tubes: insert: 200.0 L × 6.9 mm O.D.; outer sample tube: 190.0 × 8.0 mm

基本信息

NACRESSB.32

产品性质

物料glass tube
manufacturer/tradenameShigemi BMS-005TV
参数900 MHz frequency
底部长度15 mm
外层样品管外径5 mm
尺寸180 mm
管直径5 mm

Sigma-Aldrich
