产品说明
一般描述

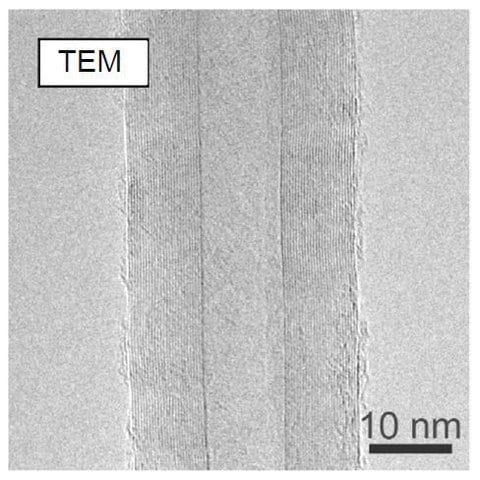

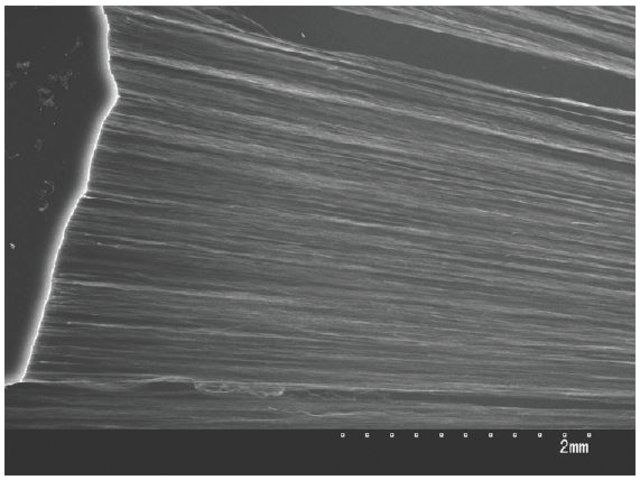

Multi-walled carbon nanotubes (MWCNT) are vertically aligned on a Si substrate with a high density. Since all the MWCNTs are bundled by van der Walls force, CNT web is drawn easily by pinching an edge of the array out from the substrate. The web is very light weight and robust, and sometimes semi-transparent.
Crystal quality of CNT is examined by Raman scattering measurement. Intensity ratio of G-peak (1580 cm-1) and D-peak (1350 cm-1) represents quality of graphitization of carbon materials. G/D of our CNT is ~3, showing high crystal quality.
制备说明
Chemical Vapor Deposition (CVD) method.
基本信息
| NACRES | NA.23 |
产品性质
| 描述 | Form: 10 mmx20 mm Si substrate |
| 质量水平 | 100 |
| 测定 | 98% (carbon as CNT) |
| 直径× 长度 | 10-40 nm × 1.0 mm ± 0.5 mm |
安全信息
| 储存分类代码 | 11 - Combustible Solids |
| WGK | WGK 3 |
| 闪点(F) | Not applicable |
| 闪点(C) | Not applicable |
