产品说明
一般描述
The material basically consists of exfoliated graphene nanoplatelets containing functional organic groups. The oxygen content is less than 5%; the majority groups are hydroxyls (OH), which enables further chemical modifications to add new functionalities. The functionalization approach was designed to attach most of the groups on the border of the foils, aiming to preserve the intrinsic properties of graphene (e.g.: electric conductivity).
应用
The product is aimed for dispersion and/or incorporation in polar solvents (e.g.: water, THF and DMF) and polar polymeric matrices (e.g.: PLA, PA and PET). It is suitable for in situ polymerization, direct resin mixing and molding, solvent dissolution, extrusion processing after incorporation. Potential applications include:
包装

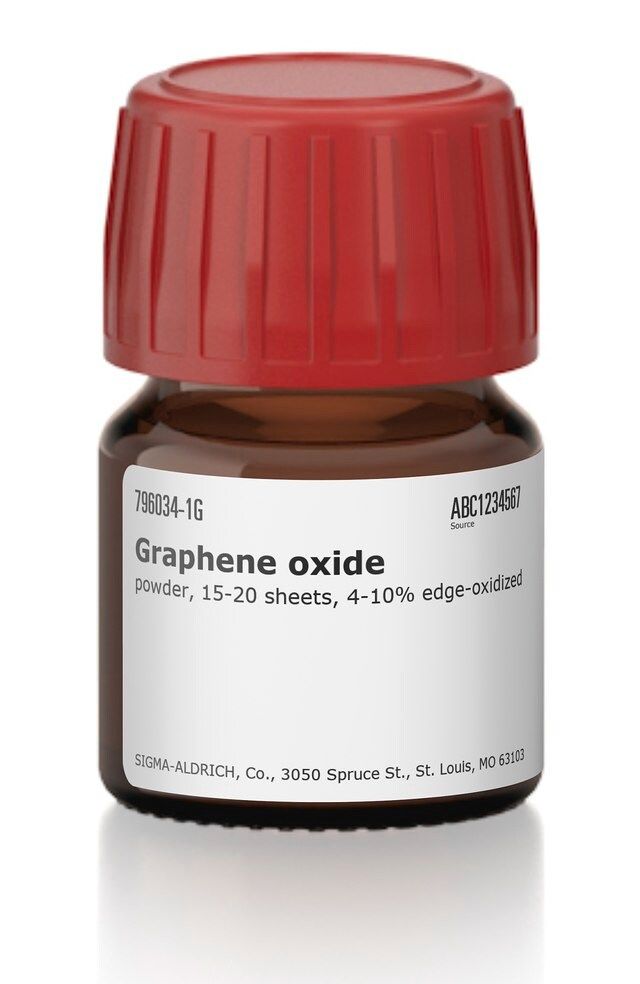

1 g in glass bottle
基本信息
| 线性分子式 | CxOyHz |
| PubChem化学物质编号 | 329768525 |
产品性质
| 质量水平 | 100 |
| 形式 | powder |
| 溶解性 | water: dispersible (polar solvents) |
| 堆积密度 | ~1.8 g/cm3 |

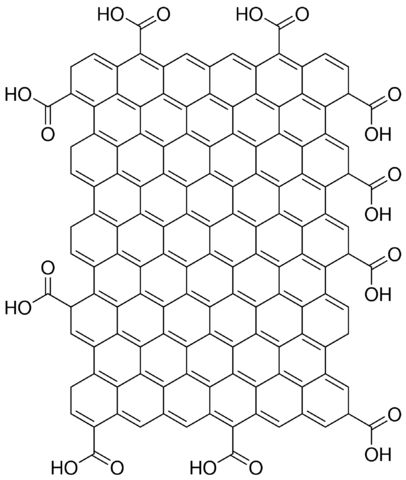

| SMILES string | O=C(O)C1C2=C3C4=C5C6=C7C8=C9C%10=C%11C(C%12=C%13C%10=C%14C8=C%15C6=C%16C4=C%17C2=CC(C(O)=O)C%18=C%17C%19=C%16C%20=C%15C%21=C%14C%22=C%13C(C%23=C%24C%22=C%25C%21=C%26C%20=C%27C%19=C%28C%18=CC(C(O)=O)C%29=C%28C%30=C%27C%31=C%26C%32=C%25C%33=C%24C(C%34=C%35C |
| InChI | 1S/C140H42O20/c141-131(142)26-13-23-15-44-62(140(159)160)45-16-24-14-40-31(132(143)144)5-1-29-41-20-48(135(149)150)56-33-7-3-28-27-2-6-32-55-37(133(145)146)11-9-35-60(138(155)156)42-17-25-18-43-61(139(157)158)36-10-12-38(134(147)148)58-46-21-50(137(153)154)59-47-22-49(136(151)152)57-34-8-4-30-39(19-26)51(23)78-72(44)88-75(45)80-52(24)79(54(29)40)95-71(41)83(56)101-93-69(33)64(28)91-90-63(27)68(32)92-86(66(35)55)73(42)81-53(25)82-74(43)87(67(36)58)96-76(46)85(59)103-97-77(47)84(57)102-94-70(34)65(30)89(78)105-104(88)115-98(80)111(95)116(101)126-122-110(93)107(91)120-119-106(90)108(92)99(81)114-100(82)112(96)118(103)128(124(114)119)123-113(97)117(102)127(130(122)129(120)123)121(109(94)105)125(115)126/h2,5,7-10,12-22,26,38,48-50H,1,3-4,6,11H2,(H,141,142)(H,143,144)(H,145,146)(H,147,148)(H,149,150)(H,151,152)(H,153,154)(H,155,156)(H,157,158)(H,159,160) |
| InChI key | VTWITIAIMADGRM-UHFFFAOYSA-N |
安全信息
| 储存分类代码 | 11 - Combustible Solids |
| WGK | WGK 3 |
| 闪点(F) | Not applicable |
| 闪点(C) | Not applicable |
