位置:首页 > 品牌 > Sigma-Aldrich > 钛酸锂尖晶石氧化物

Lithium titanate

钛酸锂尖晶石氧化物

品牌
Sigma-Aldrich
货号
765155
规格纯度
spinel, electrode sheet, aluminum substrate, size 5 in. × 10 in.
参考价格
8240.12 *本价格含增值税费
促销
服务
  • 原厂保证
  • 包邮
  • 增值税票
数量
-+
产品名称:
Lithium titanate
LTO
Lithium titanate spinel oxide
钛酸锂尖晶石氧化物
产品介绍:

产品说明

一般描述

We are committed to bringing you Greener Alternative Products, which adhere to one or more of The 12 Principles of Greener Chemistry. This product has been enhanced for energy efficiency. Find details here.
Lithium titanate (LTO) is a class of electrode material that can be used in the fabrication of lithium-ion batteries. Lithium-ion batteries consist of anode, cathode, and electrolyte with a charge-discharge cycle. These materials enable the formation of greener and sustainable batteries for electrical energy storage.

应用

Lithium titanate (LTO) spinel electrode sheet can be used as an anode material, which shows an ion conductivity of 10−3 Scm−1 at room temperature. It can also be used as an alternative to conventional graphite materials. It can further be used in the fabrication of high-performance lithium-ion batteries for electric vehicles (EVs).

包装

1 ea in glass bottle

其他说明

Crystal Structure: Spinel, cubic, Fd-3m
Operating Condiditons:

  • Recommended maximum charge voltage: 3.0 V vs Li/Li+
  • Recommended maximum charge current: 5 C
  • Recommended cut-off voltage for discharge: 1.0 V vs Li/Li+
  • Recommended maximum discharge current: 10 C

基本信息

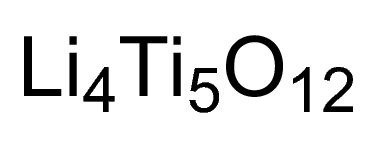

线性分子式Li4Ti5O12
MDL编号MFCD11656084
PubChem化学物质编号329767159
NACRESNA.23

产品性质

质量水平100
测定≥98%
环保替代产品特性Design for Energy Efficiency
Learn more about the Principles of Green Chemistry.
标记范围≥80% loading
标称电压 1.5 V, Li/Li+
尺寸5 in. × 10 in.
厚度25-50 μm
容量 150 mAh/g(minimum)
160 mAh/g(nominal at 0.1C)
mp>1000 ℃
application(s)battery manufacturing
环保替代产品分类Enabling
SMILES string[Li+].[Li+].[Li+].[Li+].[O-][Ti](=O)O[Ti](O[Ti]([O-])=O)(O[Ti]([O-])=O)O[Ti]([O-])=O
InChI1S/4Li.12O.5Ti/q4*+1;;;;;;;;;4*-1;;;;;
InChI keyBNQVSKURWGZJMY-UHFFFAOYSA-N

安全信息

储存分类代码11 - Combustible Solids
WGKWGK 3
