Aldrich^® Kugelrohr^TM short-path distillation apparatus

产品说明

一般描述

"Quickly Distills Difficult Materials with Minimal Hold-up and Loss"
High Vacuum Capability and Safe Front Loading Design
Distillation Applications:

• Heat-sensitive compounds
• Liquids and low-melting solids from polymers and tars
• Removes color and particulates
• Suitable for sublimation and solvent evaporation

Features:

• Air bath oven distills up to 230℃
• 25 mL to 2 L flask capacity

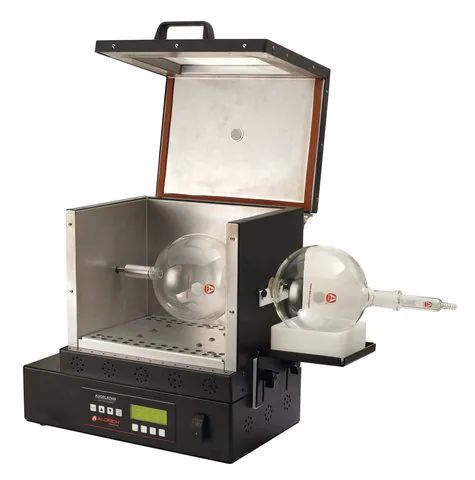

• Front Loading oven door with safety glass viewing window
• Interchangeable PTFE support bearings for flask joint 14/20
• Digital, thermocouple temperature control

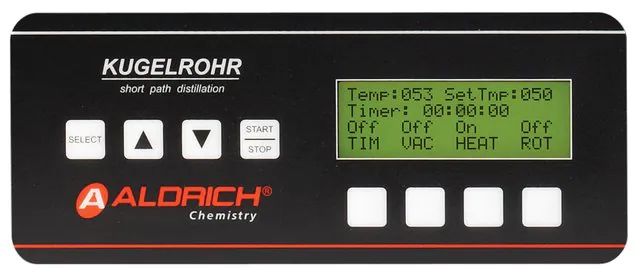

• Front panel with controls for temperature, vacuum and motor drive
• Adjustable receiving flask cooling bath
• Oscillating drive motor

Specifications:

• Oven flask size range: 25 mL to 2 L
• Heating range: ambient to 230℃, +/- 3℃ across span after stabilization
• Power: 120/240 VAC +/- 10%, 50/60 Hz +/- 3%, detachable power cord
• Fuses: Heater 7.5 A, Vac 2.5 A, Power input 10 A
• Heater: 900 W
• Size: 25 in. W x 11 in. D x 18 in. H, (30 in. clearance required with door open)
• Rotation: 270 deg each direction
• Operating environment: 32 to 40℃, 0 to 90% RH, noncondensing
• CE, WEEE and RoHS complilant

Ordering Note: Purchase Kugelrohr glassware separately.
Note: A trap between the receiving flask/s and vacuum pump is recommended.
Applications related to marijuana extraction/production are not supported.
Typical operation:
Step 1. Fill the load (oven) flask (25 mL to 2 L) one-third full with distillable material. Connect the load flask to the motor drive coupling inside the oven. Connect the load flask to a horizontal receiving flask outside the oven. Connect a straight tube to the receiving flask and to a vacuum source with rubber tubing.
Step 2. A vacuum pump may be plugged into the receptacle on the rear of the oven and switched on and off from the Kugelrohr front control panel.
Step 3. Fill cooling tray with ice.
Step 4. Turn on the Kugelrohr main power switch. Set the distillation temperature on the front control panel, turn on the motor drive and vacuum pump.
Step 5. Collect distillate in the horizontal receiving flask outside the oven.

法律信息

Aldrich is a registered trademark of sigma-aldrich Co. LLC
Kugelrohr is a trademark of sigma-aldrich Co. LLC

基本信息

NACRES

NB.43

产品性质

参数	220 ℃ temp. limit
宽度 × 高度 × 直径	25 in. × 18 in. × 11 in.
