Aldrich^® lecture-bottle station

产品说明

一般描述

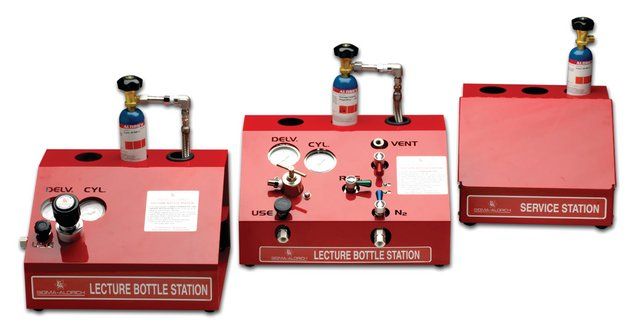

Dispensing lecture-bottle gases has never been safer or simpler using these portable lecture-bottle stations. The premium quality components housed within a station are matched to the application, fully assembled, leak-tested, and ready for use.
Just connect the station to the lecture-bottle, process, and a source of inert gas, if using a station with a purge valve, and you are ready to go.
Safe and Simple:

• Gas dispensing and storage in one compact, portable system
• Keeps lecture-bottles upright and stable, eliminates tip-over
• Reduces equipment damage and chance of personal injury
• Choice of four models matched to the application
• Online Lecture-Bottle Equipment to Gases Selection Guide

Station Specifications:
1. Heavy-gauge steel cabinet with durable, red enamel finish, table-top or wall mountable
2. Quality, panel-mounted regulators and purge valves
3. Braided, 316L stainless steel hose with CGA-180 remote connection to the lecture-bottle
4. Support for two lecture-bottles, one in use and a spare
5. Clearly labeled gauges, gas connections, and valve functions
6. Instructions for Use label on front of cabinet
7. Fully assembled, leak-tested and ready for use
For inert and non-corrosive gas applications.
Regulator specifications:
Single stage, panel-mounted brass body with stainless steel pressure diaphragm, brass nozzle, polyurethane seat, nylon seals, self seating type relief valve, 11/2 in. diameter gauges, 3000 psig maximum inlet pressure, 0-80 psig delivery range, brass outlet needle valve with 1/4 in. NPTF connection.

联系

For more information on station set-up, see the Lecture Bottle Technical Bulletin

法律信息

Aldrich is a registered trademark of sigma-aldrich Co. LLC

基本信息

NACRES

NB.51

产品性质

物料	brass regulator
入口CGA	180
总宽度 × 直径 × 高度	14 in. × 12 in. × 8 1/2  in.
