产品说明
一般描述
For mildly-corrosive and high-purity gas applications. Purge valve sits between the lecture-bottle and regulator to purge system with inert gas to remove air, moisture, and process gas to maintain high-purity conditions and to minimize gas hydrolysis and corrosion damage to equipment. A check valve at purge inlet prevents backflow of gas. Purge system with dry, inert gas before introducing mildly corrosive gases and again immediately after use.
Regulator specifications:
Single stage, panel-mounted stainless steel body and pressure diaphragm, cartridge type seat PCTFE, PTFE and PCTFE seals, self seating type relief valve, 2 inch diameter stainless steel gauges, helium leak rate tested at 1 x 10-8 ssc/sec., 3000 psig maximum inlet pressure, 0-80 psig delivery range, Stainless steel outlet needle valve with
T-Purge valve specifications: 316L stainless steel body and diaphragm-seal valve, 3000 psig maximum inlet pressure, inlet check-valve, with

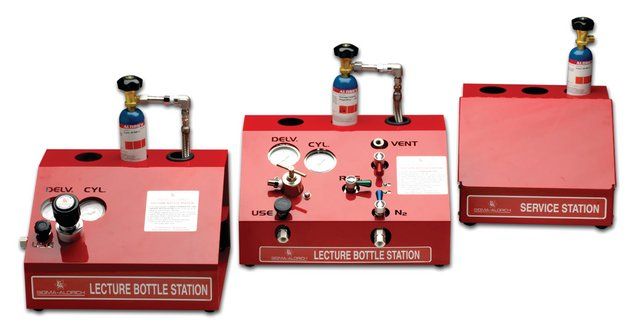

Dispensing lecture-bottle gases has never been safer or simpler using these portable lecture-bottle stations. The premium quality components housed within a station are matched to the application, fully assembled, leak-tested, and ready for use.
Just connect the station to the lecture-bottle, process, and a source of inert gas, if using a station with a purge valve, and you are ready to go.
Safe and Simple:
联系
For more information on station set-up, see the Lecture Bottle Technical Bulletin
法律信息
Aldrich is a registered trademark of sigma-aldrich Co. LLC
基本信息
NACRES | NB.51 |
产品性质
入口CGA | 180 |
总宽度 × 直径 × 高度 | 16 in. × 12 in. × 8 1/2 in. |
