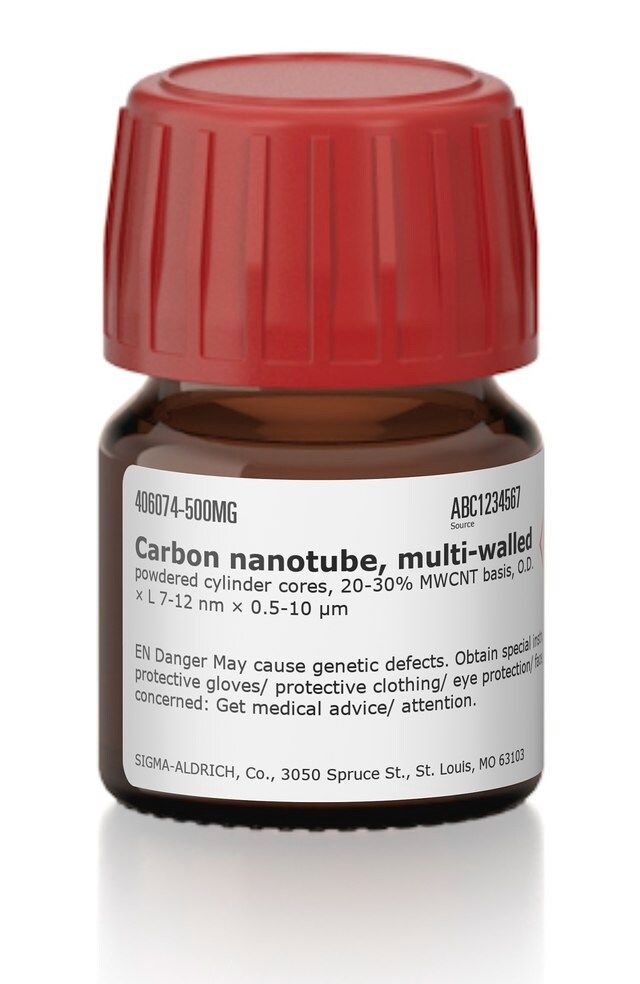

Carbon nanotube, multi-walled

多壁碳纳米管

品牌
Sigma-Aldrich
CAS
308068-56-6
货号
406074
规格纯度
powdered cylinder cores, 20-30% MWCNT basis, O.D. × L 7-12 nm × 0.5-10 μm
参考价格
1136.77 *本价格含增值税费
促销
服务
  • 原厂保证
  • 包邮
  • 增值税票
数量
-+
产品名称:
308068-56-6
Carbon nanotube, multi-walled
Multiwall carbon nanotube
MWCNT
MWNT
多层碳纳米管
多壁碳纳米管
产品介绍:

产品说明

一般描述

Multi-walled carbon nanotube core surrounded by a fused carbon shell, the remainder being multi-layer polygonal carbon nanoparticles and amorphous and graphitic carbon nanoparticles.It contains approximately 5-20 graphitic layers. Carbon nanotubes produced by arc discharge technique contain very low impurity and possesses very high crystallinity. 4

应用

Bundles of MWNTs were trapped and manipulated to form nanotube ropes using optical tweezer. MWNTs were calcined and sonicated to form carbon nanoribbons. The nanoribbons were used to fabricate array of 98 source and drain electrodes on a 300 nm SiO2/p++Si substrates.2 A MWNT probe was fabricated on Si cantilevers.
Carbon nanotube, multi-walled (MWNT) belongs to the class of carbonaceous materials with excellent physiochemical, thermo-mechanical and electrochemical properties. This material can be used in a variety of sustainable energy applications such as solar cells, photocatalysis, biosensor, gas sensor, supercapacitor and as a filler that acts as a reinforcement to improve the mechanical property of composites.

包装

500 mg in glass insert
1, 5 g in glass bottle

外形

大约 5-20 层石墨。含大约 10-40% 的纳米管,其余的为多层多边形碳纳米粒子以及无定形和石墨碳纳米粒子。

制备说明

由电弧法生产

其他说明

We are committed to bringing you Greener Alternative Products, which adhere to one or more of The 12 Principles of Greener Chemistry. This product has been enhanced for energy efficiency. Find details here.

基本信息

NACRESNA.23

产品性质

质量水平100
测定20-30% MWCNT basis
形式powder
组成carbon content, >99% TGA
环保替代产品特性Design for Energy Efficiency
Learn more about the Principles of Green Chemistry.
外径 × 长度7-12 nm × 0.5-10 μm
平均零件尺寸−270 mesh
<53 μm
mp3652-3697 ℃ (lit.)
密度~2.1 g/mL at 25 ℃ (lit.)
环保替代产品分类Enabling

安全信息

储存分类代码11 - Combustible Solids
WGKWGK 3
闪点(F)Not applicable
闪点(C)Not applicable
个人防护装备dust mask type N95 (US), Eyeshields, Gloves
