产品说明
应用
Use this cobalt complexes to increase photovoltages of liquid electrolyte cells substantially or to achieve ultrahigh performance with solid state photovoltaic devices.
FK102 cobalt complexes offer guaranteed performance, high reproducibility, consistent results, and are of highest purity. In comparison to triiodide-based redox electrolytes, cobalt complexes in general increase photovoltages and particularly at lower light levels (e.g. for indoor applications), significantly increase device power output.
Recommended use:
In liquid-based electrolytes: typically 0.15-0.2M of Co(II) and ca. 0.05M Co(II)
In solid-state photovoltaic cells: up to 10 weight % added to the hole transport material system.
包装
5 g in poly bottle
法律信息
Product of Greatcell Solar®.
Greatcell Solar is a registered trademark of Greatcell Solar
基本信息

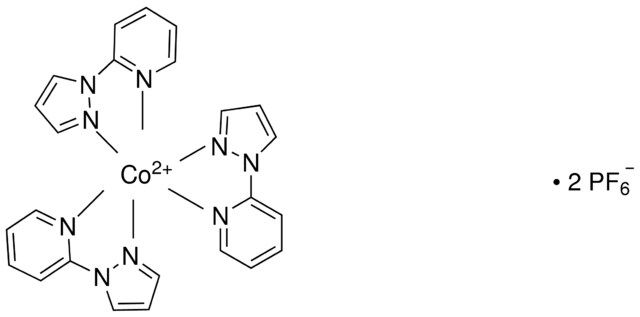

| 经验(实验)分子式 | C24H21CoF12N9P2 |
| 分子量 | 784.35 |
| MDL编号 | MFCD29037024 |
| PubChem化学物质编号 | 329768922 |
| NACRES | NA.23 |
产品性质
| 测定 | 98% |
| 质量水平 | 100 |
| 形式 | powder |
| mp | 362 ℃ |
| SMILES string | F[P-](F)(F)(F)(F)F.F[P-](F)(F)(F)(F)F.N1(C2=NC=CC=C2)N=CC=C1.C3(N4C=CC=N4)=CC=CC=N3.C5(N6C=CC=N6)=CC=CC=N5.[Co+2] |
| InChI | 1S/3C8H7N3.Co.2F6P/c3*1-2-5-9-8(4-1)11-7-3-6-10-11;;2*1-7(2,3,4,5)6/h3*1-7H;;;/q;;;+2;2*-1 |
| InChI key | MLELXRWOHQBFBO-UHFFFAOYSA-N |
安全信息
| 象形图 |  |
| 警示用语： | Warning |
| 危险声明 | H315 - H317 - H319 - H335 |
| 预防措施声明 | P280 - P302 + P352 - P305 + P351 + P338 |
| 危险分类 | Eye Irrit. 2 - Skin Irrit. 2 - Skin Sens. 1 - STOT SE 3 |
| 靶器官 | Respiratory system |
| 储存分类代码 | 11 - Combustible Solids |
| WGK | WGK 3 |
| 闪点(F) | Not applicable |
| 闪点(C) | Not applicable |
