产品说明
应用
Use this cobalt complexes to increase photovoltages of liquid electrolyte cells substantially or to achieve ultrahigh performance with solid state photovoltaic devices, such as perovskite and dye-sensitized solar cells.
FK 269 cobalt complexes offer guaranteed performance, high reproducibility, consistent results, and are of highest purity. In comparison to triiodide-based redox electrolytes, cobalt complexes in general increase photovoltages and, particularly at lower light levels (e.g. for indoor applications), significantly increase device power output.
包装
5 g in poly bottle
法律信息
Product of Dyesol®
Dyesol is a registered trademark of Greatcell Solar
基本信息

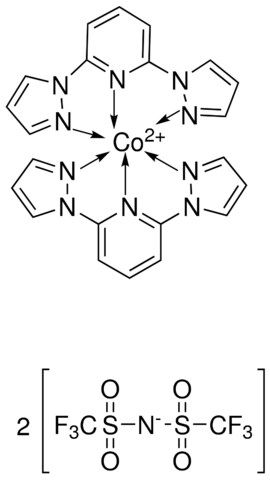

经验(实验)分子式 | C26H18CoN12O8S4F12 |
分子量 | 1041.67 |
PubChem化学物质编号 | 329768962 |
产品性质
测定 | 98% |
质量水平 | 100 |
形式 | powder |
mp | 188 ℃ |
SMILES string | O=S([N-]S(=O)(C(F)(F)F)=O)(C(F)(F)F)=O.O=S([N-]S(=O)(C(F)(F)F)=O)(C(F)(F)F)=O.C1(N2N=CC=C2)=CC=CC(N3C=CC=N3)=N1.N4(C5=NC(N6N=CC=C6)=CC=C5)N=CC=C4.[Co+2] |
InChI | 1S/2C11H9N5.2C2F6NO4S2.Co/c2*1-4-10(15-8-2-6-12-15)14-11(5-1)16-9-3-7-13-16;2*3-1(4,5)14(10,11)9-15(12,13)2(6,7)8;/h2*1-9H;;;/q;;2*-1;+2 |
InChI key | IYOKUFSLXXBXHL-UHFFFAOYSA-N |
安全信息
象形图 | |
警示用语: | Warning |
危险声明 | H315 - H317 - H319 - H335 |
预防措施声明 | P280 - P302 + P352 - P305 + P351 + P338 |
危险分类 | Eye Irrit. 2 - Skin Irrit. 2 - Skin Sens. 1 - STOT SE 3 |
靶器官 | Respiratory system |
储存分类代码 | 11 - Combustible Solids |
WGK | WGK 3 |
闪点(F) | Not applicable |
闪点(C) | Not applicable |
