Zirconium(IV) oxide-yttria stabilized

氧化锆-钇稳定

品牌
Sigma-Aldrich
CAS
114168-16-0
货号
464228
规格纯度
submicron powder, 99.9% trace metals basis (purity excludes ~2% HfO2)
参考价格
1254.31 *本价格含增值税费
促销
服务
  • 原厂保证
  • 包邮
  • 增值税票
数量
-+
产品名称:
114168-16-0
Zirconium(IV) oxide-yttria stabilized
Yttrium stabilized zirconium oxide
Yttria stabilized zirconia
YSZ
氧化锆-钇稳定
钇稳定氧化锆
产品介绍:

产品说明

一般描述

Zirconium(IV) oxide-yttria stabilized (YSZ) (submicron powder) is an oxygen ion conductor with properties such as good ionic conductivity and high physiochemical stability. Its other properties include excellent shock resistance, low thermal conductivity and a high coefficient of thermal expansion.
Yttria stabilized zirconia (YSZ) is the most commonly used solid electrolyte for solid oxide fuel cells (SOFCs) and oxygen sensors. YSZ exhibits high oxygen-ionic conductivity while blocking electronic conduction. YSZ particles may be synthesized from yttrium nitrate or isopropoxide by the sol gel method. YSZ nanoparticles may be prepared in supercritical water (SCW). YSZ nanoparticles of different sizes with varying % mol of yttria may be obtained by CO2 laser based continuous/pulsed laser vaporization method.

应用

Collagen-yttria-stabilized amorphous zirconia hybrid scaffolds may be developed. YSZ thin films may be used as thermal barrier coatings on combustors, stationary and rotating components of gas turbines or diesel engines. 6
YSZ can be used for a variety of applications such as:

  • a thermal barrier coating for the protection and insulation of metal components in gas turbines
  • an electrolyte in the fabrication of solid oxide fuel cells (SOFCs)
  • in the fabrication of zirconia dental implant abutments
  • membranes for micro energy conversion devices
  • a solid acid and a catalyst for catalytic applications


用于固体氧化物燃料电池 (SOFC) 的电解质材料。

包装

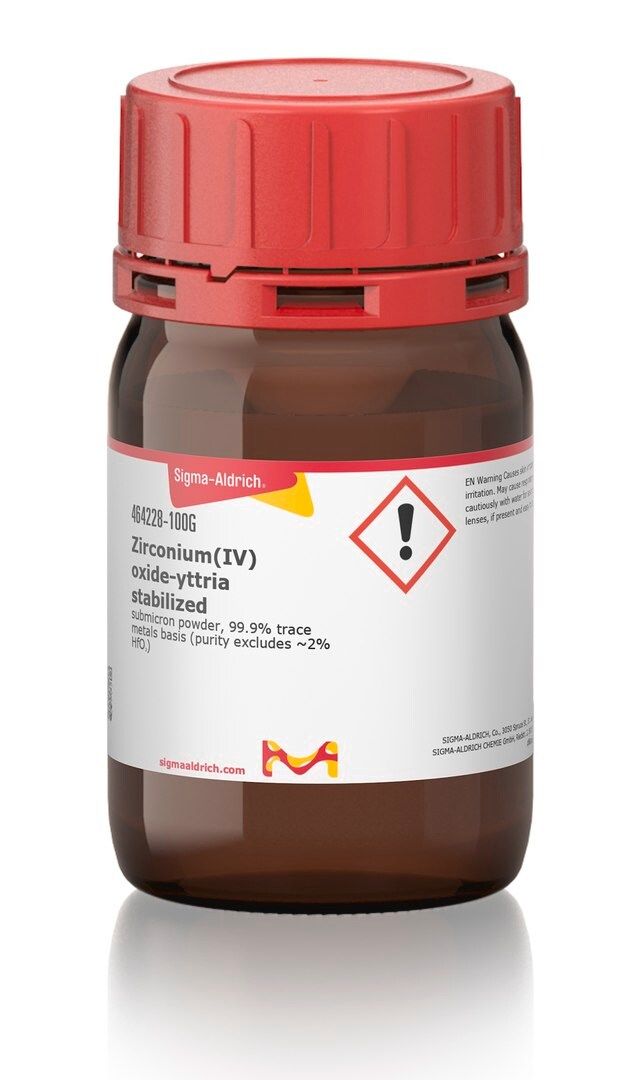

100, 500 g in glass bottle
Packaged in glass bottles

基本信息

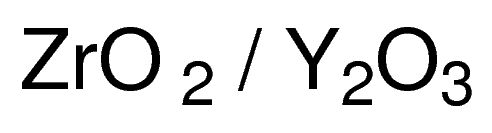

线性分子式ZrO2 · Y2O3
分子量349.03
MDL编号MFCD00145546
PubChem化学物质编号329757174
NACRESNA.23

产品性质

质量水平100
测定99.9% trace metals basis (purity excludes ~2% HfO2)
形式submicron powder
包含~8 wt. % yttria as stabilizer
环保替代产品特性Design for Energy Efficiency
Learn more about the Principles of Green Chemistry.
粒径~700 nm
表面积 5.0-9.0 m2/g
mp>2,600 ℃ (lit.)
application(s)battery manufacturing
环保替代产品分类Enabling
SMILES stringO=[Zr]=O.O=[Y]O[Y]=O
InChI1S/5O.2Y.Zr
InChI keyKSTOPEBVPBSOTK-UHFFFAOYSA-N

安全信息

象形图GHS07
警示用语:Warning
危险声明H315 - H319 - H335
预防措施声明P261 - P264 - P271 - P280 - P302 + P352 - P305 + P351 + P338
危险分类Eye Irrit. 2 - Skin Irrit. 2 - STOT SE 3
靶器官Respiratory system
储存分类代码11 - Combustible Solids
WGKWGK 3
闪点(F)Not applicable
闪点(C)Not applicable
个人防护装备dust mask type N95 (US), Eyeshields, Gloves

Sigma-Aldrich
