产品说明
一般描述

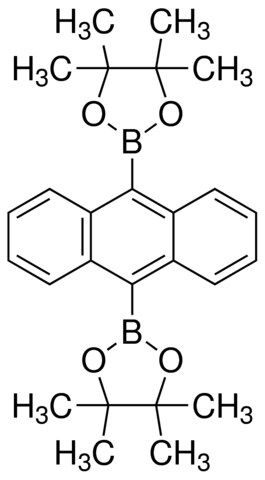

9,10-Anthracenediboronic acid bis(pinacol) ester is an anthracene based ester that has a conjugated structure. It is an electron rich building block that can be used as an electron donating molecule in the formation of donor-acceptor based organic semiconductor devices. Its planarity and rigid molecular structure allow it to have good charge transporting properties.
应用
9,10-Anthracenediboronic acid bis(pinacol) ester can be used in the synthesis of polyarylpyrazolines, which can further be utilized in the preparation of organic light emitting diodes (OLEDs).
包装
1 g in glass bottle
基本信息
经验(实验)分子式 | C26H32B2O4 |
分子量 | 430.15 |
MDL编号 | MFCD16294538 |
PubChem化学物质编号 | 329764106 |
NACRES | NA.23 |
产品性质
测定 | 97% |
形式 | solid |
mp | >300 ℃ |
SMILES string | CC1(C)OB(OC1(C)C)c2c3ccccc3c(B4OC(C)(C)C(C)(C)O4)c5ccccc25 |
InChI | 1S/C26H32B2O4/c1-23(2)24(3,4)30-27(29-23)21-17-13-9-11-15-19(17)22(20-16-12-10-14-18(20)21)28-31-25(5,6)26(7,8)32-28/h9-16H,1-8H3 |
InChI key | ZLXSWNVYGSZXOP-UHFFFAOYSA-N |
安全信息
储存分类代码 | 13 - Non Combustible Solids |
WGK | WGK 3 |
闪点(F) | Not applicable |
闪点(C) | Not applicable |
