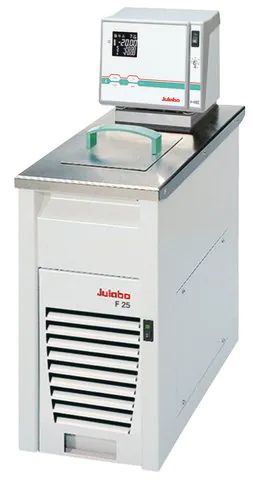

Julabo<sup>®</sup> HighTech series refrigerated/heating circulator

产品名称：

Julabo^® HighTech series refrigerated/heating circulator

产品介绍：

产品说明

一般描述

For internal and external temperature applications. All HighTech circulators are capable of monitoring an external system directly with an optional Pt 100 temperature sensor. Safety class 3.

ICC = Intelligent Cascade Control
Optimum temperature stability with varying systems achieved by the self-tuning controller, adjustable PID control parameters
VFD Comfort display, resolution to 0.01℃
RS232 and RS485 interface, option: integrated Profibus
LCD display (HL model only) for convenient user-guidance, analog/digital setpoint input. Display resolution 0.01 up to 99.99℃

法律信息

Julabo is a registered trademark of Julabo USA, Inc.

基本信息

NACRES

NB.77

产品性质

manufacturer/tradename	FP35-HL Julabo 9312618
参数	-35 ℃ temp. range (150 ℃) 0.2 bar suction rate (0.4 bar) 0.4 bar pump pressure (0.7 bar) 22-26 L/min pump flow
冷却能力	0.45 kw (at 20 ℃)
液槽开口宽度 × 长度 × 直径	18 cm × 12 cm × -- cm
体积	2.5 L
