一般描述
Graphene FET chip (GFET-S20 chip) is a graphene based field effect transistor which can be coated on silicon substrate by atmospheric pressure chemical vapor deposition (CVD). It also has similar gate insulators in the source and drain.
Device configuration:

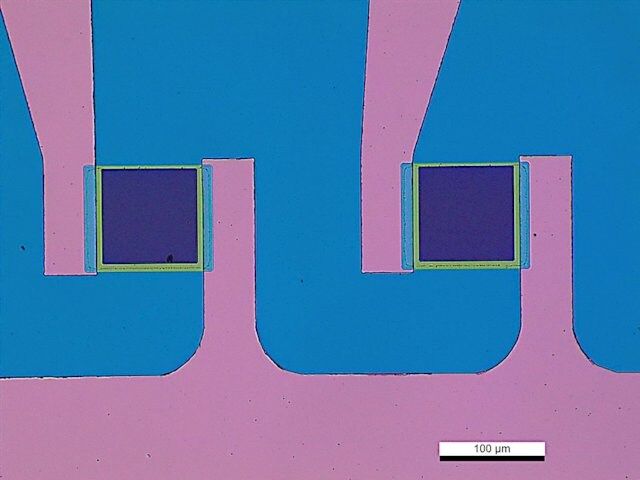

The graphene FET-S20 chip is designed for measurements in liquid medium. This chip provides 12 graphene devices, with encapsulation on the metal pads to avoid degradation and reduce leakage currents, and the probe pads located near the periphery of the chip. It also includes a non-encapsulated electrode at the center of the chip, which allows liquid gating without the need of an external gate electrode.
应用
特点和优势
Device Features:
产品性质

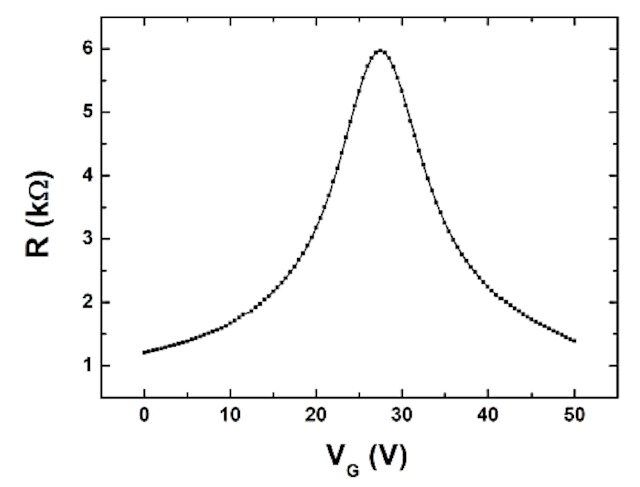

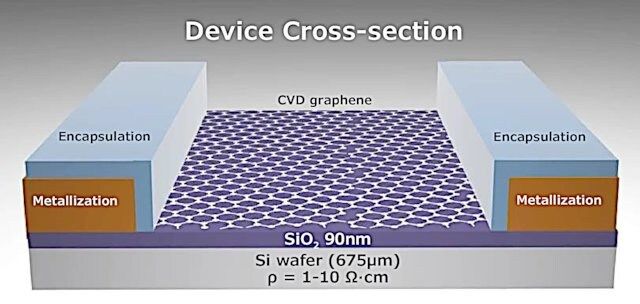

描述 | Absolute Maximum Ratings Maximum gate-source voltage: ± 50 V Maximum temperature rating: 150 ℃ Maximum drain-source current density: 107 A/cm2 Chip dimensions: 10 mm x 10 mm Chip thickness: 675 μm Dirac point: < 50 V Yield >75% Encapsulation: 50 nm Al2O3 + 100 nm Si3N4 Gate oxide materials: 90 nm SiO2 Graphene field-effect mobility: >1000 cm2/V·s Monolayer CVD grown Graphene based 2-probe field effect transistors (FET). Number of devices per chip: 12 Resistivity of substrate: 1-10 Ω·cm Metallization: Chromium/Gold-Palladium 2/50 nm |
安全信息
储存分类代码 | 11 - Combustible Solids |
WGK | WGK 3 |
闪点(F) | Not applicable |
闪点(C) | Not applicable |
