Phase Guide Mixer Chip

产品说明

应用

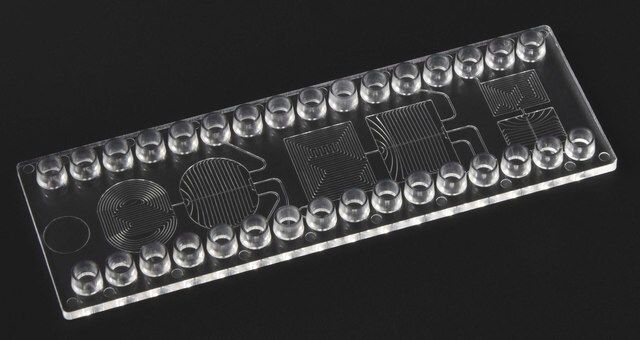

The Phase Guide Mixer Fluidic 533 COC microfluidic chip applies passive phaseguided mixing principles and is not meant to be used in flow-through mode.

特点和优势

• Three varying micromixing units per chip
• Each unit features three inlets and one outlet
• Phaseguide technology provides complete control over the filling and emptying of microfluidic structures

组分

Chip Properties:

• Mini Luer Interface
• Material: Cyclic olefin copolymer (COC)

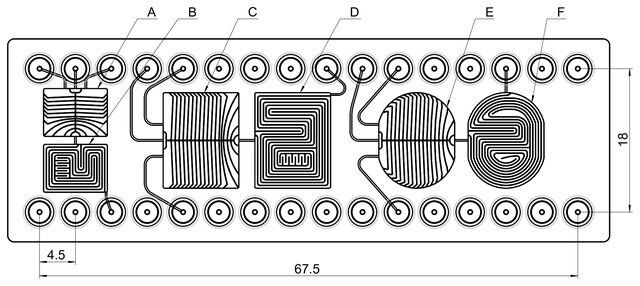

• Volume of Chambers A & B: 5.6 μl
• Volume of Chambers C & D: 13.2 μl
• Volume of Chambers E & F: 11.1 μl

This mixer is based on the principles described in S. Hakenberg et al., A phaseguided passive batch microfluidic mixing chamber for isothermal amplification, Lab Chip, 12, 4576-4580, 2012.

产品性质

描述	Microfludic chip x1
