Snowman Mixer Chip

产品说明

应用

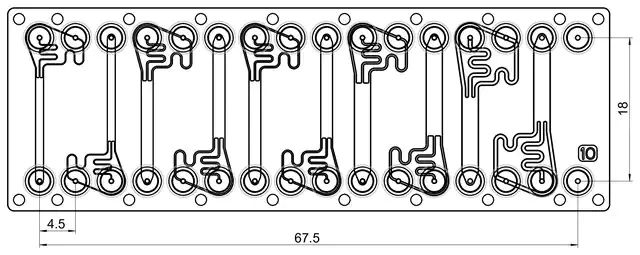

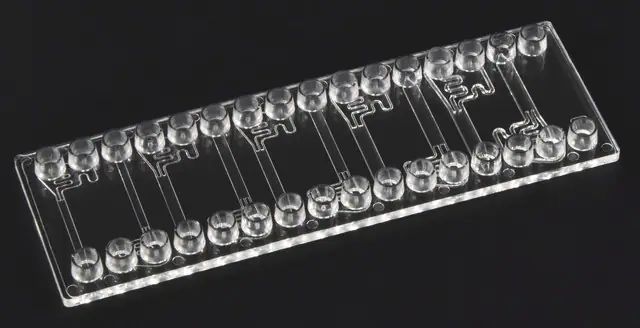

The Snowman Mixer Fluidic 1108 COC microfluidic chip applies passive mixing principles and its unique shape to achieve fast mixing of two solutions.

特点和优势

• Eight identical micromixing units per chip
• Each unit features one outlet two inlets and one outlet
• Instantaneous mixing is achieved by adding small volumes (up to 5 μl) of Solution A and larger volumes of solution B which are immediately transferred and mixed in the large reaction chamber
• Ideal for signal read-out of bioreactions (fluorescence, luminescence, etc.) due to fast mixing times
• This chip is not meant to be used in flow-through mode

组分

Chip Properties:

• Mini Luer Interface
• Material: Cyclic olefin copolymer (COC)
• Reaction chamber volume: 50 μl

产品性质
