Finger Pump Mixer Chip

产品说明

应用

The Finger Pump Mixer 999 COC microfluidic chip applies active mixing principles by integrating a finger pump and a variety of features counteracting the laminar flow to generate mixtures with a wider range of mixing ratios that are not feasible with passive mixing devices.

特点和优势

• One micromixing unit per chip
• The mixing of up to three liquids is facilitated by the pearl-chain unit

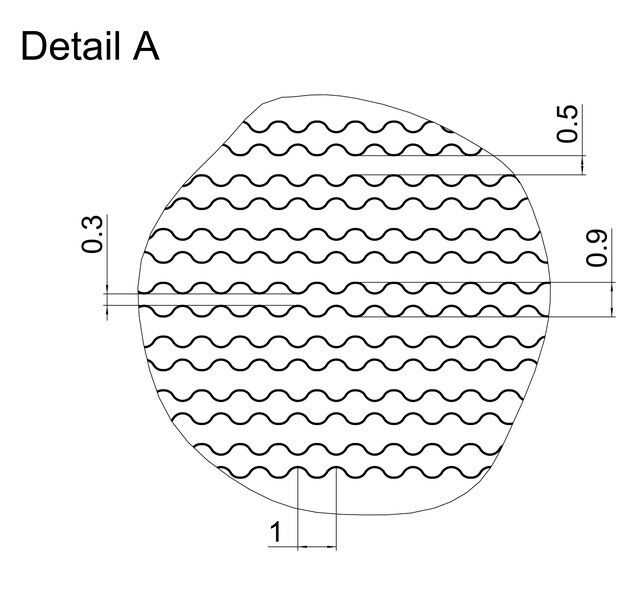

• The structures of the pearl-chain unit increase lateral velocity to enhance mixing
• An integrated figure pump is used to displace air and move liquid back and forth in the channel system which improves mixing by allowing long co-flow
• The integrated pump can either be actuated by hand or controlled and automated with a suitable actuator

组分

Chip Properties:

• Mini Luer Interface
• Material: Cyclic olefin copolymer (COC)

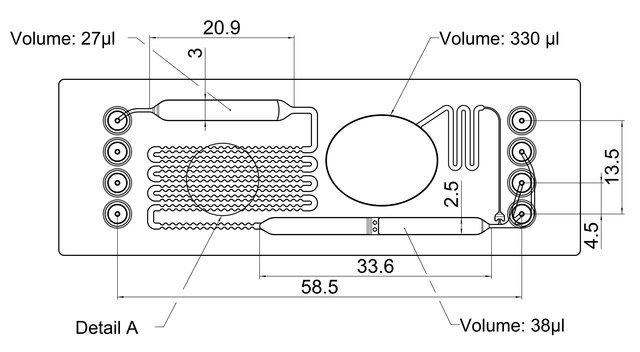

• Chamber Volumes: 27 μl, 38 μl, 330 μl

产品性质
