锌 5,10,15,20-四（4-吡啶基）-21 <I> H </I> ,23 <I> H </I>-卟啉

产品名称：

31183-11-6

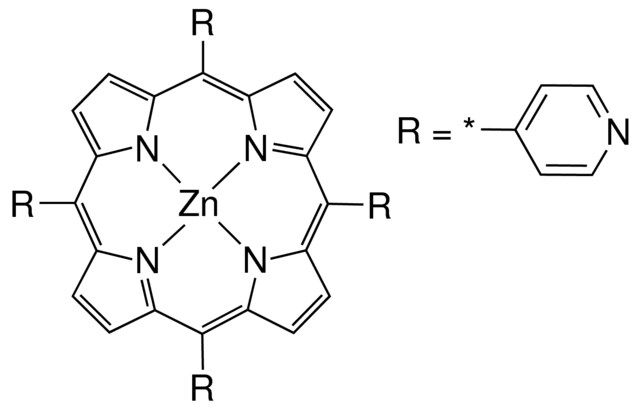

Zinc 5,10,15,20-tetra(4-pyridyl)-21H,23H-porphine
锌 5,10,15,20-四（4-吡啶基）-21 H ,23 H -卟啉

产品介绍：

产品说明

应用

Zinc 5,10,15,20-tetra(4-pyridyl)-21H,23H-porphine (ZnTPyP) forms an organic thin-film, which can be used to fabricate hybrid heterojunction solar cells. It is also used in the production of organic nanostructures, which find applications in organic field-effect transistors (OFET), organic light-emitting displays (OLED), and nanosensors.

包装

1 g in glass bottle

基本信息

经验(实验)分子式	C₄₀H₂₄N₈Zn
分子量	682.06
MDL编号	MFCD00274658
PubChem化学物质编号	24868719
NACRES	NA.47

产品性质

测定	88.5% (HPLC)
质量水平	100
形式	powder
组成	Dye content, 90%
mp	>300 ℃ (lit.)
λ_max	423 nm
ε (extinction coefficient)	≥200000 at 420-426 nm in chloroform
application(s)	diagnostic assay manufacturing hematology histology
储存温度	room temp
SMILES string	[Zn]1n2c3ccc2c(-c4ccncc4)c5ccc(n5)c(-c6ccncc6)c7ccc(c(-c8ccncc8)c9ccc(n9)c3-c%10ccncc%10)n17
InChI	1S/C40H24N8.Zn/c1-2-30-38(26-11-19-42-20-12-26)32-5-6-34(47-32)40(28-15-23-44-24-16-28)36-8-7-35(48-36)39(27-13-21-43-22-14-27)33-4-3-31(46-33)37(29(1)45-30)25-9-17-41-18-10-25;/h1-24H;/q-2;+2/b37-29-,37-31-,38-30-,38-32-,39-33-,39-35-,40-34-,40-36-;
InChI key	PZGANULLXCGPFZ-GFPSKMGBSA-N

安全信息

储存分类代码	13 - Non Combustible Solids
WGK	WGK 3
闪点(F)	Not applicable
闪点(C)	Not applicable
