产品说明
一般描述
应用
For material scientists in the field of organic semiconductors, it is critically important to have standardized device architecture for material analysis.

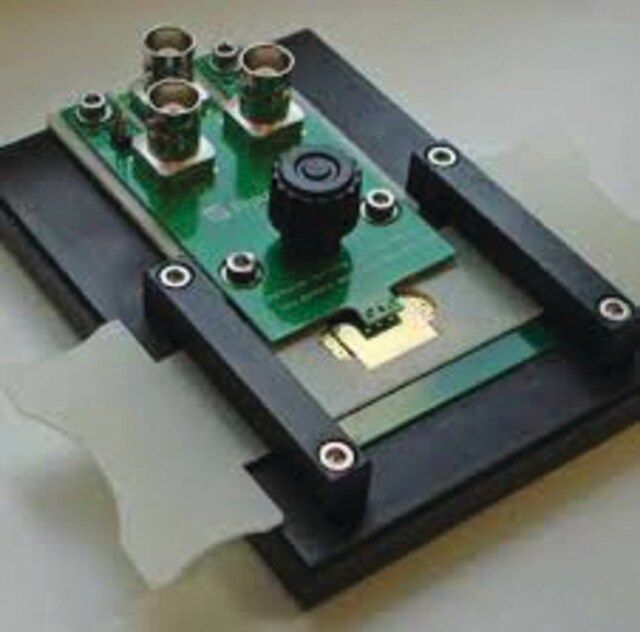

In order to simply and quickly measure OFET components with a given substrate size, pad grid and pad arrangement in large batches, this miniprober was developed.
It has two electric connections on the front (source and drain) and one connection on the back (gate) and does not require probe station, samplers or manipulator pins.
A reliable interconnection is established on contact pads, which are only 0.5 × 0.5 mm² in size. Customized versions of the miniprober varying the connection arrangement, the position and number of the pads are possible. This makes the miniprober suitable for other applications in addition to OFETs. Signals are transmitted to the measurement instrument by BNC or triax cables.
特点和优势
Advantages of the OFET Miniprober are:
包装
in foamed plastic case, packed with manual
制备说明
Contact check with microscope is recommended.
法律信息
Product of Fraunhofer IPMS
产品性质
包装 | pkg of 1 ea |
