Millipore All-Glass Filter Holders - Kit
47 mm, Glass frit membrane support, 300 mL Funnel
The Millipore All-Glass Filter Holder was designed for the filtration of aqueous and organic or corrosive liquids for particulate contamination analysis. The holder can also be used for HPLC solvent preparation. The vacuum connection is integrated into the filter holder base and flask cap, above the filtrate exit level. With this design, you can avoid unintentionally drawing filtrate into vacuum tubing. This design also allows simple transfer of filtrate (i.e., HPLC solvents) by pouring from the receiver flask.

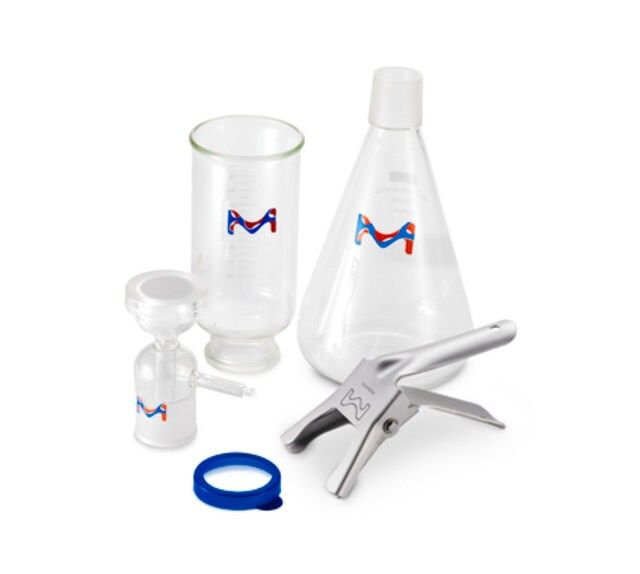

This item is a Kit composed of the following items:
(Catalog Number - Description)
XX5014704 - Millipore Glass funnel, 500 mL, 47 mm, Borosilicate, Ground glass seal
XX1014703 - Millipore Spring Clamp, 47 mm, Aluminum
XX1514702 - Millipore Glass Base and Cap, 47 mm, Glass frit support
XX1514705 - Millipore Ground Joint Flask, 1L
ALIGNED05 - Millipore Alignment Guide, 47 mm, 5/PK
Features & Benefits:
• All-Glass construction has broad chemical compatibility
• Borosilicate glass parts contact liquid, with ground-glass sealing surfaces
• Vacuum connection to flask cap simplifies transfer of filtrate
Applications:
Particle Contamination Analysis, HPLC Solvent Filtration, General Filtration and Clarification
应用
47 mm, Glass frit membrane support, 500 mL funnel
原理
真空
基本信息
eCl@ss | 32031613 |
产品性质
质量水平 | 100 |
物料 | anodized aluminum spring clamp(s) borosilicate glass base borosilicate glass funnel(s) fritted glass support (for filter) silicone sleeve (for alignment) tubulated borosilicate glass cap |
高度 | 43 cm |
过滤器直径 | 47 mm |
过滤面积 | 9.6 cm2 |
培养瓶容量 | 1 L |
培养瓶直径 | 13.7 cm |
漏斗容量 | 300 mL |
漏斗直径 | 8.0 cm |
配件 | inlet funnel 6 mm ( |
application(s) | filtration |
相容性 | for use with All-Glass Filter Holder |
运输 | ambient |
